Platform Ladders OIML and NTEP Certified Parallel Beam Load Cell WL1260 (KeLi UDJ, Zemic L6W) for Platform Ladders

1.0 Pieces
MOQ
Platform Ladders OIML and NTEP Certified Parallel Beam Load Cell WL1260 (KeLi UDJ, Zemic L6W) for Platform Ladders
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: WL1260
Type: Load Cell
Usage: Platform scales
Theory: Resistance sensor
OIML Accuracy Class: C5
Rated Load: 100kg to 750kg
Rated output: 2.0±0.2mV/V
Input resistance: 404±15Ω
Excitation Voltage: 5~12VDC
Output resistance: 352±3Ω
Platform size: 600X800
Water proof: IP65
Material: Aluminum
Warranty: 1 Year
Basis informatie
Model Number: WL1260
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Neutral packing or according to customers' requirements
Supply Ability: 500 Piece/Pieces per Day
Productomschrijving

OIML and NTEP Certified Aluminum Load Cell WL1260(KeLi UDJ, Zemic L6W) From 100kg to 750kg For Platform Scales



FEATURES

1.OIML R60 approved C5;
2.NTEP HB44 approved;
3.Max. capacitis: 100kg~750kg;
4.offer center load compensated( OIML R76)
5.Max. platform size: 600X800;
6.IP65 protection;
7.Aluminum construction;

8.Interchangeable KeLi UDJ, Zemic L6W, HBM PW16A, MT1260.



DESCRIPTION

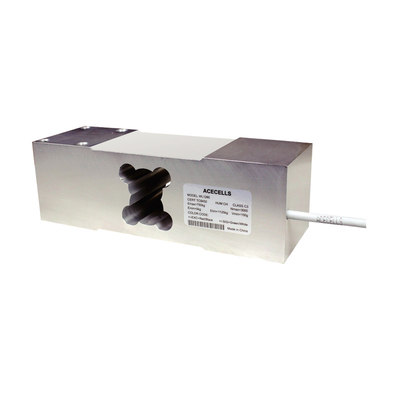

Model WL1260 is a low profile single point load cell designed for direct mounting of low cost weighing platforms.

Its small physical size, combined with high accuracy and low cost, makes this load cell ideally suited for retail, bench and counting scales.

OUTLINE DIMENSIONS(mm)





SPECIFICATIONS

CERTIFICATE
