WEIGHING 10t 30t Electronic Truck Scales Weighbridge Weighing Load Cell

10 Pieces
MOQ
WEIGHING 10t 30t Electronic Truck Scales Weighbridge Weighing Load Cell
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: XH8250
Type: Load Cell
Usage: WEIGHING, PRESSURE SENSOR
Theory: LOAD, Resistance Sensor
Output: 2mV/V, Analog SENSOR
Description: LOAD CELL
Product name: Load Cell
Material: Stainless Steel
Certificate: CE
Capacity: 10/15/20/25/30/40t
Accuracy Class: C3
Input Resistance: 760±10Ω
Output Resistance: 702±2Ω
Basis informatie
Certificering: CE
Model Number: XH8250
Betalen & Verzenden Algemene voorwaarden
Supply Ability: 1000 Piece/Pieces per Month
Productomschrijving

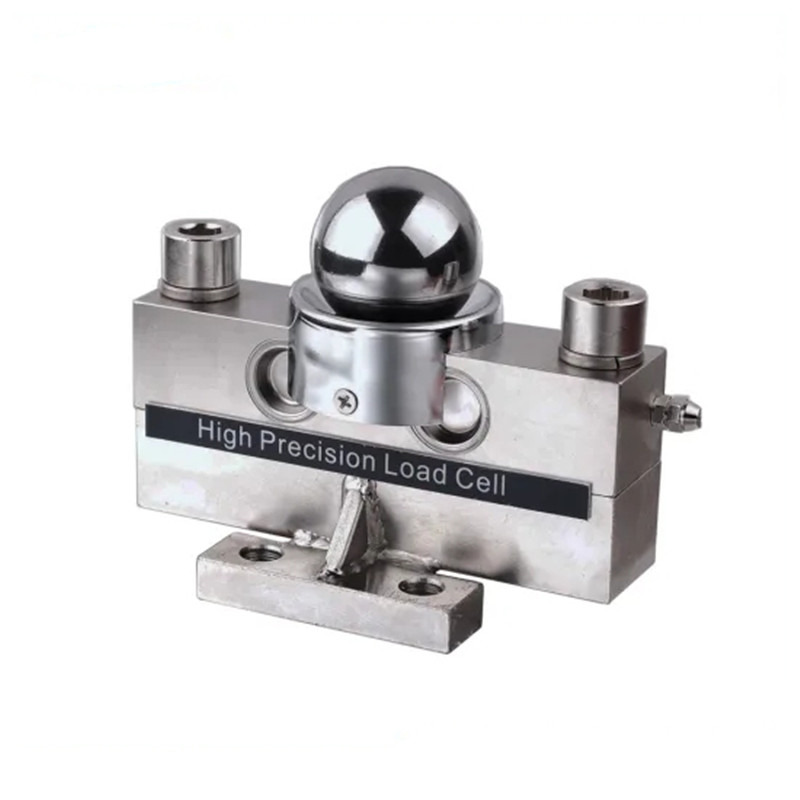

XH8250 LOAD CELL
* The bridge type load cell is also known as the double ended shear beam load cell. According to the Weston bridge principle, it combines alloy steel or stainless steel elastomer with a high precision strain gauge to produce a reliable weighing load cell. This product can be used in industrial scales (car scales, railway scales, hopper scales, etc. ) and force measuring equipment.

Application to: Weighing bridge, truck scale, weighing module, etc.

Technical parameters:

Rated capacity 10/15/20/25/30/40t
Accuracy class C3
Rated output 2.0±0.002mV/V
Temperature effect on zero ±0.02%F. S/10ºC
Temperature effect on sensitity ±0.02%F. S/10ºC
Creep (30 min) ±0.02%F. S
Input resistance 760±10Ω
Output resistance 702±2Ω
Operating temperature range -30ºC ~ +70ºC
Safe overload 150%F. S
Destructive load 300%F. S
Excitation recommend 4~12V DC, max 15V DC
Construction Alloy steel
Protection class IP68
Cable length 4 core cable standard lengths 16m (10t ~ 40t)
Diameter Ø 6
Option Customized cable length
